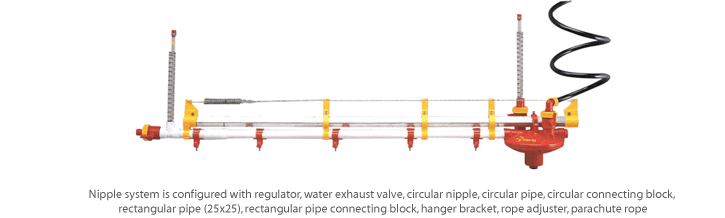

ΆΖ HOME  Product Information Poultry nipple water supply system |
 |
|||||||
 |
|||||||
 |
|||||||
 |
|||||||
 |
|||||||

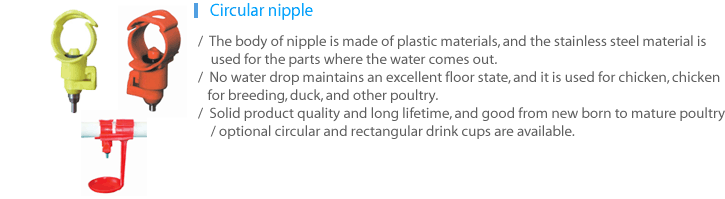

| Product photographs | Type | Connection method | Breed | Birds/Nipple | Amount of supply water | Hole and tap size | |
 |
10011-T | Rubber inserts type | layer(cage) | 6~8 | 100 | 9.5m/m Hole | |
 |
10022-T | Screw type | layer(cage) | 10~12 | 100 | 1.8" (thread line) | |
 |
10023-MP | Rubber inserts type | broiler, breeder | 15~18 | 70 | 11.5m/m Hole | |
 |
10024-MP | Screw type | broiler, breeder | 15~18 | 70 | 1.8" (thread line) | |
 |
10025-2 | Screw type | broiler, breeder | 12~15 | 35 | 1.8" (thread line) | |
 |
10026-B | Rubber inserts type | broiler, breeder | 12~15 | 35 | 9.5m/m Hole | |
 |
10026-2 | Rubber inserts type | broiler, breeder | 12~15 | 35 | 9.5m/m Hole | |
 |
10026-3 | Rubber inserts type | broiler, breeder | 12~15 | 35 | 9.5m/m Hole | |
 |
|||||||
 |
|||||||
