ΆΖ HOME  Product Information Ventilation system |
 |
||||
 |
||||
| Fan Model | propeller diameter | motor power | blow capacity | |

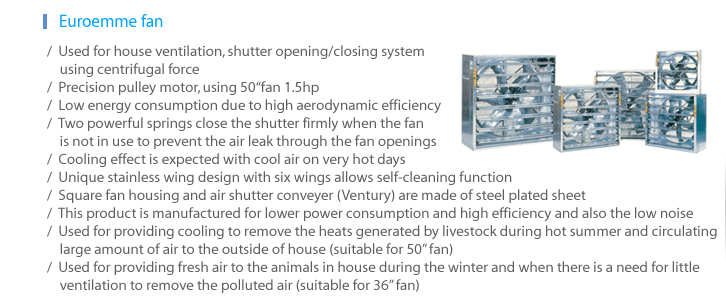

| EM 50" | 1,270mm | 1.5hp | 24,800 | |
| EM 36" | 915mm | 0.75hp | 11,700 | |
| wing rotation rate | weight | power consumption | fan size(cm) | |
| 420 | 86kg | 1,100W | 138x138x45 | |
| 560 | 67kg | 550W | 109x109x45 | |
|
||||
 |
||||
 |
||||
 |
||||
 |
||||
 |
||||
 |
||||
 |
||||
 |
||||
 |
||||
 |
||||
 |
||||
 |
||||

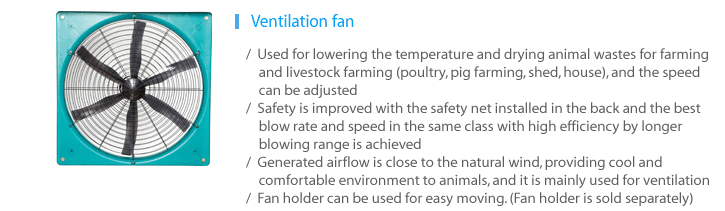

| Model name | Wing diameter | Moter | Voltage | |
| 40" | 1,000 | 1HP 8 | 220V / 60HZ | |
| power consumption | RPM | CFM | condenser | |
| 0.66KW 3.2A | 700x50 | 15,460 | 20 / 450 | |
